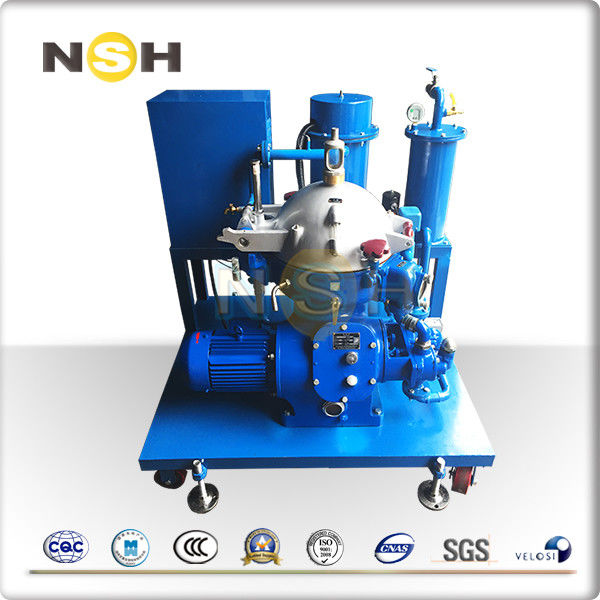

Disc Centrifugal separation system, centrifugal separator, 1500 liters/hour

1500 liters/hour High Precision Centrifugal Separator

Application

Sino-NSH Fuel and lube oil treatment machine can be used in marine, power stations, and oilfield industries. Specially designed for the purification and recycling of liquid oil, to overcome the harmful effects of oil contaminants, water, and solid particles from the fuel oil, lubrication oil, and other mineral oil in marine engine units and land generator units of power stations so as to reduce wear of diesel engine and another machine, and prolong the serving life. The model is also used to separate two unsolvable liquids with different specific gravity or remove solid particles from the liquid.

Description

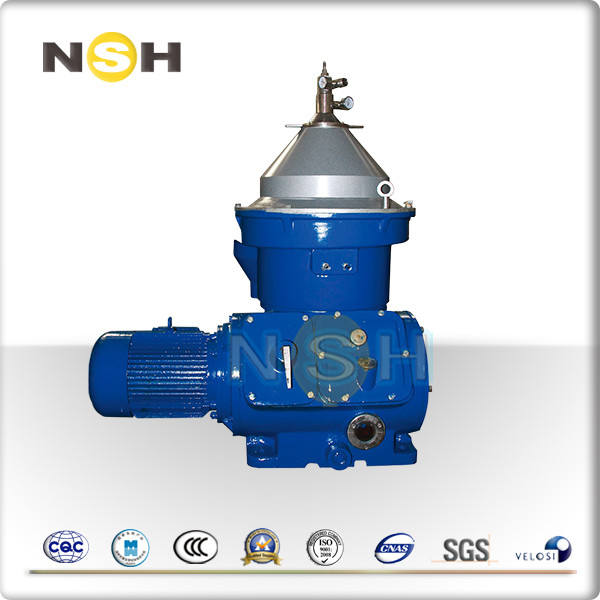

It is an oil purification system with heating, filtering, oil delivery, and centrifugal separation processing. NSH solids-retaining type centrifugal purifier, using the principle of different densities of oil, water, and solid (light and heavy phases) getting different velocities, separates insoluble liquids and low-content solid particles. After the heating system, the viscosity of the oil lowers down. Then it is fed into a centrifugal bowl and into the distributor. It undergoes acceleration until it reaches the bowl rotating speed. The distributor conveys the product to the rising channels of the disks stack where the separation between the heavy and light phases takes place. The light phase flows towards the center of the bowl and the heavy phase flows towards the bowl periphery. Both phases rise in the disks stack and reach the two upper chambers of the bowl. Here centripetal pumps convey them under pressure to the outlet pipelines. The solids impurities are collected in the periphery of the bowl where they must be removed manually.

Features

 Efficient: Utilizing high-speed centrifugal technology, a large number of solid impurities and water can be quickly removed from the lubricating oil.

 Portable: the machine is compact in structure, and light in weight. Skid mounted on four caster wheels.

 Durable: The frame of the machine is made of high-quality gray cast iron, and the main bowl part is made of stainless steel, which is corrosion-resistant.

 Adaptable: Equipped with an electric heater, the oil temperature can be adjusted within the range of 20 to 80 degrees as requested. Can be used in freezing climates.

 Simple operation: Highly integrated control, switch and adjustment functions can be realized on the electric control panel.

 Stable: Equipped with gravity discs, the machine can be adjusted according to the terrain to make it horizontally balanced and ensure its smooth operation.

 Lower maintenance and replacement expenses.

 High-speed rotary machine, low vibration, safe and stable.

 High efficiency and effectiveness.

 Low noise. Advantages

Reduce equipment wear Clean oil minimizes mechanical wear. Enhance equipment operating efficiency and service life.

High machine work efficiency The machine utilize centrifugal technology and multi-stage filtration system, the impurities and water can be effectively move from oil.

Low Maintenance Cost & Extended Service Life As the system is mainly used for routine maintenance rather than handling heavily contaminated oil, the treated oil remains relatively clean. This significantly extends the service life of the filter element and reduces replacement frequency and operating costs. In addition, the centrifugal system operates without significant mechanical wear, enabling long-term continuous and stable operation.

Machine Specification
